Product Center

Product Classification
LMK5(BH)-0.66 Series Split-type Current Transformer

Print current page

Product Description

  • brief introduction
  • technical parameter
  • Product size

Application

LMK5(BH)-0.66 type current transformer is mainly used for indoor, for rated voltage up to and including 0.66 kV, rated frequency 50Hz ac circuit as the electric current and electric energy measurement and relay protection. Product is a plastic shell type current transformer, are widely used in the complete sets of cabinet put oneself in another's position, its installation method can be used bus fixed and base plate fixed installation method.
Standard: GB/T 20840

Working And Installation Conditions

1.? Installation sites: Indoor?
2.? Ambient temperature : (-5~40)℃
3. Ambient humidity: ≤80%
4. Altitude: ≤1000m
5. Atmospheric conditions: no serious impurity?in the atmosphere.

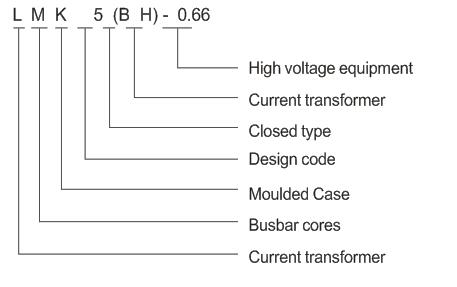

Model And??Implication?

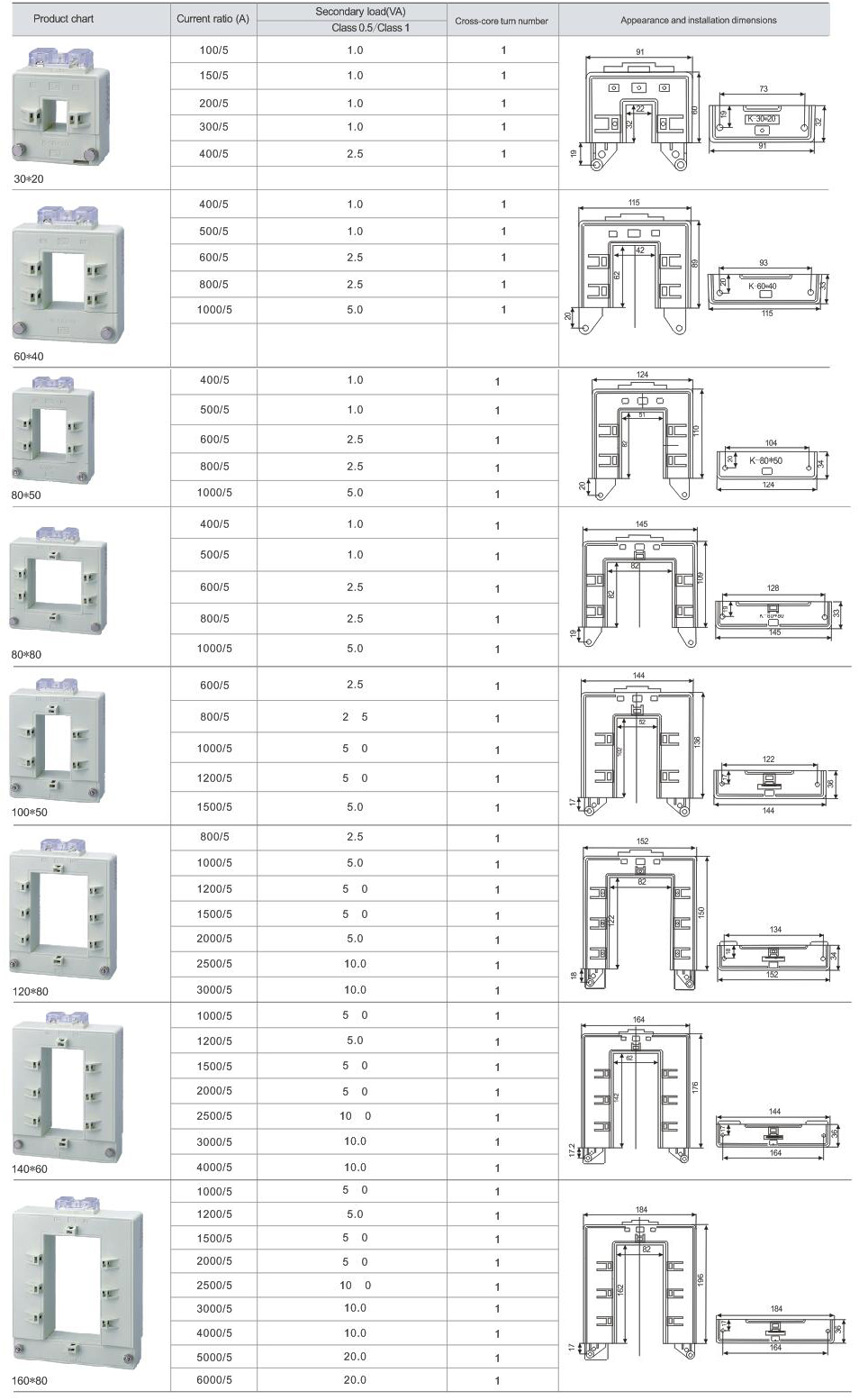

External And Installation Size
